L7Plot介绍

L7Plot 基于 L7 实现的开箱即用地理空间数据可视化图表库

• L7Plot 专注于地理可视化图表。

• 以声明配置式的方式，降低用户使用成本；

• 以常见地理图表分类的方式，降低用户选择成本；

• 内部集成全国行政区域数据，降低用户使用地理数据心智；

• 支持多图层及多图表层叠，方便用户定制复杂的业务场景；

• L7Plot 专注于地理数据可视化展示，不会涉及数据编辑能力。

前言

项目需要，使用antdesignpro做前端，并绘制可视化大屏，回执地图组件，于是使用了L7Plot。

功能目的

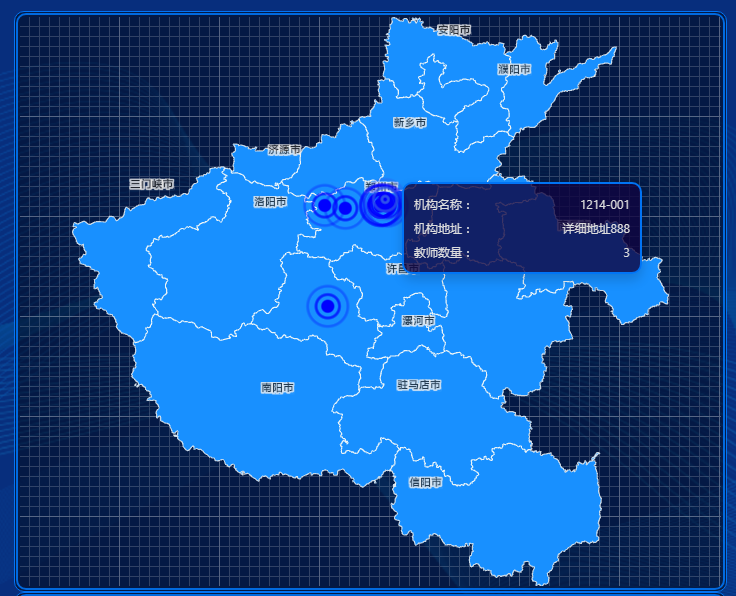

绘制地图，并标记坐标点，鼠标指向坐标时，显示坐标点信息。

参考官网：https://ant-design-charts.antgroup.com/

经过多番试用，最终选择了高级图表来实现此功能https://l7plot.antv.antgroup.com/api/advanced-plot

1、定义接口

export async function organizationCount(body?: { [key: string]: any }, options?: { [key: string]: any }) {
  return request<API.RequestResult>(host + '/base/count/organization_count', {
    method: 'POST',
    credentials: 'include',
    data: body,
    ...(options || {}),
  });
}

后台tp框架，接口

public function organization_count()
    {
        $list = Db::name('data_organization')->where("location != ''")->field("id,name,address,location")->select();
        $count2 = Db::name('system_user')->where(['usertype'=>2,'is_deleted'=>0])->field("oid,count(id) as count")->group('oid')->select();

        foreach ($list as $vo)
        {
            $location = explode(',',$vo['location']);
            $user_count = 0;
            foreach ($count2 as $k2 => $v2)
            {
                if ($v2['oid'] == $vo['id'])
                {
                    $user_count = round($v2['count']);
                }
            }

            $res[] = [
                'lng' => round($location[0],6),//坐标
                'lat' => round($location[1],6),//坐标
                'depth' => 10,
                'mag' => 5,//气泡大小
                'name' => $vo['name'],//tooltip显示
                'address' => $vo['address'],//tooltip显示
                'user_count' => $user_count,//tooltip显示
            ];
        }

        $this->success('成功',$res);
    }

2、引入组件

import { organizationCount } from '@/services/ant-design-pro/countApi';
import { L7Plot } from '@antv/l7plot';
import { useEffect } from 'react';
import styles from '../style.less';

3、绘制地图

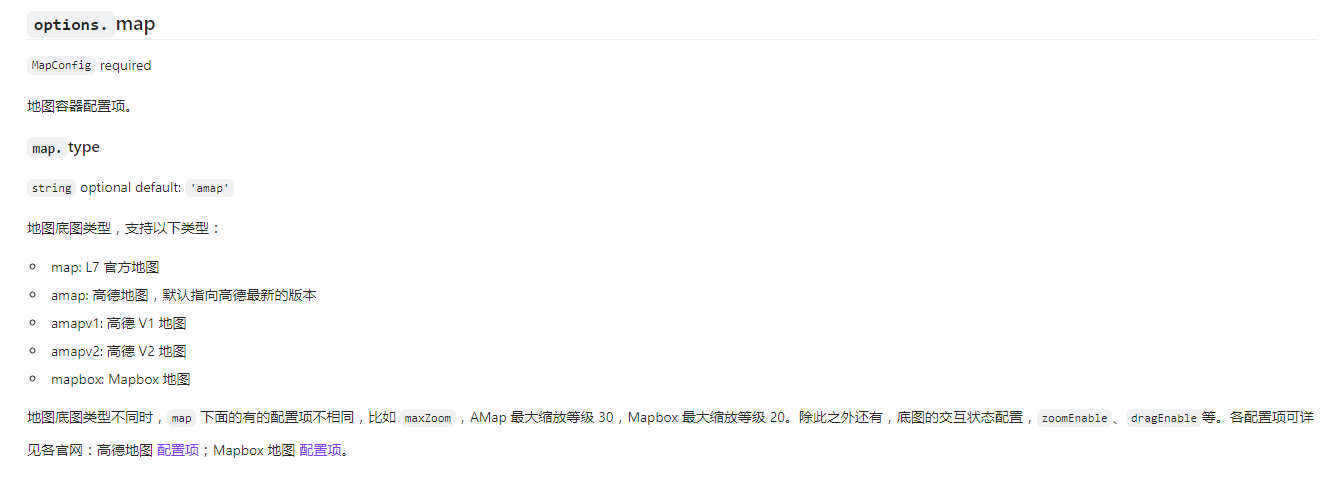

此处我选择的是高德地图amap。

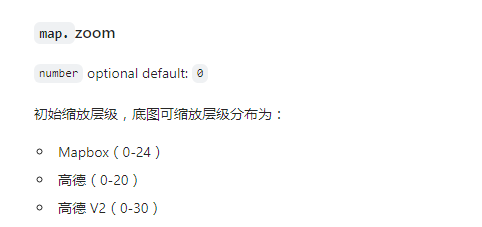

缩放级别，此处我选择级别4

地图样式，此处我选择dark，此处有些问题，我选择的dark原先是生效的，过了段时间后不生效了，可能是版本更新问题吧，由于已经做好，就没有在修改版本，自己写了个css样式，将本经修改掉了

地图如层配置：

type: 'choropleth',

地图需要显示省级，我这里是河南省，并写上邮政编码

viewLevel: {
              level: 'province',
              adcode: '410000',
            },

此处需要与数据来源配置相匹配

source: {
              data: [],
              joinBy: {
                sourceField: 'code',
                geoField: 'adcode',
              },
            },

设置地图颜色

color: '#1890FF',

其它的按照官网示例配置就可以，有需要的可自行调整。

已上地图层已经配置好了，接下来配置坐标点气泡。

4、绘制气泡层

type: 'dot',

配置数据源

source: {
              data: res?.data,
              parser: { type: 'json', x: 'lng', y: 'lat' },
            },

配置动效

animate: {
              enable: true,
              speed: 0.3,
              rings: 3,
            },

配置气泡颜色大小

color: {
              field: 'mag',
              value: ['blue'],
              scale: { type: 'quantile', range: [20, 50] },
            },
            size: {
              field: 'mag',
              value: ({ mag }) => mag * 10,
            },

配置弹出层tooltip数据及样式，样式是地图成型后自己一点一点修改的（辛苦）

tooltip: {
              items: [
                { field: 'name', alias: '机构名称：' },
                { field: 'address', alias: '机构地址：' },
                { field: 'user_count', alias: '教师数量：' },
              ],
              domStyles: {
                'l7plot-tooltip': {
                  backgroundColor: 'rgba(17, 4, 64, 0.8)',
                  backgroundSize: '100% 100%',
                  border: '2px #0174f5 solid',
                  borderRadius: '10px',
                  cursor: 'pointer',
                  width: '240px',
                  position: 'relative',
                  left: 16,
                  bottom: 16,
                },
                'l7plot-tooltip__list': { background: 'none' },
                'l7plot-tooltip__list-item': {
                  whiteSpace: 'normal',
                  wordBreak: 'break-word',
                },
                'l7plot-tooltip__name': { color: '#ddd',textAlign:'left' },
                'l7plot-tooltip__value': { color: '#ddd',textAlign:'right' },
              },
              showComponent: true,
            },

最后，完整代码

import { organizationCount } from '@/services/ant-design-pro/countApi';
import { L7Plot } from '@antv/l7plot';
import { useEffect } from 'react';
import styles from '../style.less';

const OrganizationModal = () => {
  const initMap = () => {
    organizationCount().then((res) => {
      new L7Plot('container', {
        map: {
          type: 'amap',
          style: 'dark',
          center: [113.753094, 34.767052],
          zoom: 4,
          pitch: 0,
        },
        plots: [
          {
            type: 'choropleth',
            zIndex: 1,
            source: {
              data: [],
              joinBy: {
                sourceField: 'code',
                geoField: 'adcode',
              },
            },
            viewLevel: {
              level: 'province',
              adcode: '410000',
            },
            autoFit: true,
            color: '#1890FF',
            style: {
              opacity: 1,
              stroke: '#F2F7F7',
              lineWidth: 0.6,
              lineOpacity: 0.8,
            },
            label: {
              visible: true,
              field: 'name',
              style: {
                fill: '#000',
                opacity: 0.8,
                fontSize: 10,
                stroke: '#f0f0f0',
                strokeWidth: 2,
                textAllowOverlap: false,
                padding: [5, 5],
                textOffset: [0, 40],
              },
            },
          },
          {
            type: 'dot',
            zIndex: 2,
            source: {
              data: res?.data,
              parser: { type: 'json', x: 'lng', y: 'lat' },
            },
            color: {
              field: 'mag',
              value: ['blue'],
              scale: { type: 'quantile', range: [20, 50] },
            },
            size: {
              field: 'mag',
              value: ({ mag }) => mag * 1.5,
            },
            animate: {
              enable: false,
            },
          },
          {
            type: 'dot',
            zIndex: 3,
            source: {
              data: res?.data,
              parser: { type: 'json', x: 'lng', y: 'lat' },
            },
            color: {
              field: 'mag',
              value: ['blue'],
              scale: { type: 'quantile', range: [20, 50] },
            },
            size: {
              field: 'mag',
              value: ({ mag }) => mag * 10,
            },
            style: {
              opacity: 1,
              stroke: '#fff',
              strokeWidth: 1,
            },
            state: { active: true },
            animate: {
              enable: true,
              speed: 0.3,
              rings: 3,
            },
            tooltip: {
              items: [
                { field: 'name', alias: '机构名称：' },
                { field: 'address', alias: '机构地址：' },
                { field: 'user_count', alias: '教师数量：' },
              ],
              domStyles: {
                'l7plot-tooltip': {
                  backgroundColor: 'rgba(17, 4, 64, 0.8)',
                  backgroundSize: '100% 100%',
                  border: '2px #0174f5 solid',
                  borderRadius: '10px',
                  cursor: 'pointer',
                  width: '240px',
                  position: 'relative',
                  left: 16,
                  bottom: 16,
                },
                'l7plot-tooltip__list': { background: 'none' },
                'l7plot-tooltip__list-item': {
                  whiteSpace: 'normal',
                  wordBreak: 'break-word',
                },
                'l7plot-tooltip__name': { color: '#ddd',textAlign:'left' },
                'l7plot-tooltip__value': { color: '#ddd',textAlign:'right' },
              },
              showComponent: true,
            },
          },
        ],
        layers: [],
      });
    });
  };

  useEffect(() => {
    initMap();
  }, []);

  return (
    <div className={styles.modal} style={{ height: '100%' }}>
      <div className={styles.modal2}>
        <div className={styles.modalContent} style={{ padding: 2 }}>
          <div id="container" style={{ width: '100%', height: '100%', overflow: 'hidden' }}></div>
        </div>
      </div>
    </div>
  );
};

export default OrganizationModal;

在页面引入此组件即可

<Row gutter={24} style={{ textAlign: 'center' }}>
              <Col xl={{ span: 24 }} style={{ height: '60vh' }}>
                <OrganizationModal />
              </Col>
            </Row>

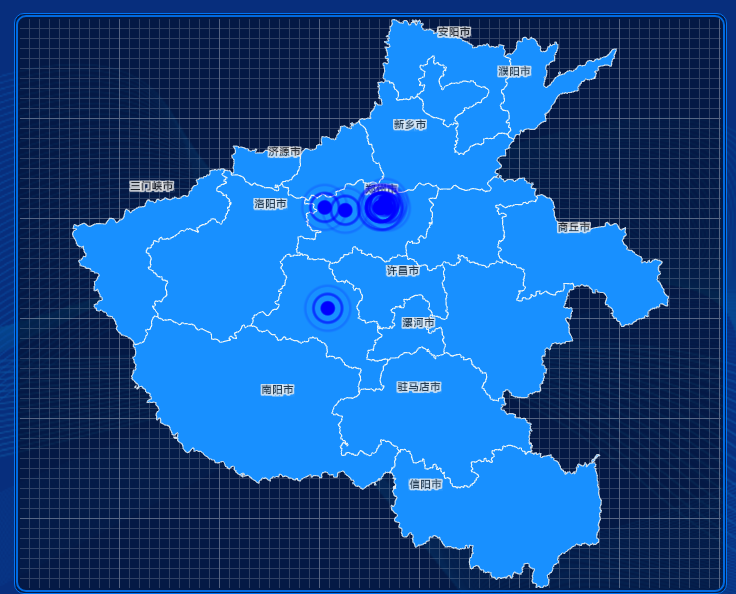

最终效果
